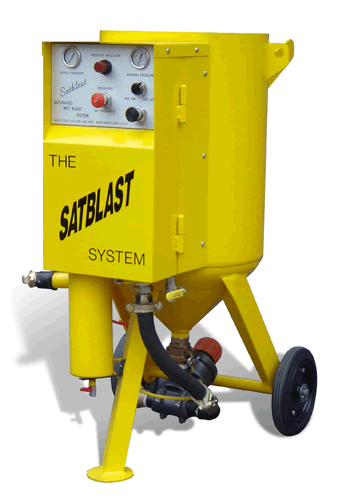

SatBlast

The SatBlast has been developed to provide a highly versatile
and controllable Dust Free abrasive cleaning solution

Operation Instruction
Technical Specifications and Data
Method Statement
ATEX Certificate

Key features include:

Complete Dust Free operation
• To dry dust ingress onto adjoining properties
• Protects operators and passers-by
• Variable blasting pressure from 10 to 100 psi
• Low pressure operation for stone, brick and timber
• High pressure operation for steel and concrete
• Fully adjustable abrasive media flow.
• Pneumatically operated unit can be used in hazardous areas.
• Fixed fill of water and abrasive, no constant water supply required.
• Can also be used as a dry blast machine.
• Can be used with a range of abrasives.
• Blasting with water mist rather than water jet to minimise clean up time
• Wash down facility available.
• Max working pressure 8.7 bar, designed in accordance with the Pressure Equipment Directive 97/23/EC.
• Dry weight 120kg, dimensions H-1100mm x D-950mm x W-600mm.
• Quick release couplings on grit valve to aid cleaning out.
• Unit includes, emergency stop, pressure regulator, inlet and working pressure gauges, choke valve and tungsten carbide & urethane lined, normally closed, abrasive metering valve.
• Supplied with 10m of blast house and helmet with visor.
